Configuration

This section covers configuring your widget's metadata, appearance, settings, and preview functionality. Proper configuration ensures your widget integrates seamlessly with the platform and provides users with a flexible, customizable experience.

Table of Contents

1. Configuring Widget Metadata
2. Using Theming and Styling
3. Creating Widget Settings
4. Implementing Widget Preview

---

Configuring Widget Metadata

Reference:

• Widget Config
• Microapp Metadata
• Widget Metadata

Note: This configuration is already set up during the 'Run Setup Wizard' step described in Section 2.

Basic Widget Configuration

widget-config.json:

{
  "id": 210,
  "port": 5210,
  "name": "ACME_KpiTracker",
  "widgetType": 1,
  "vendorPrefix": "acme",
  "tenentSlug": "acme",
  "exposes": {
    "./Widget": "./src/widget/widget",
    "./WidgetSettings": "./src/widget/widget-settings",
    "./WidgetPreview": "./src/widget-preview/widget-preview"
  },
  "widgetDetails": {
    "title": "KPI Tracker",
    "type": "Informer",
    "description": "Displays key performance indicators with real-time updates and third-party integrations",
    "issuer": "ACME Corporation",
    "innerTags": [],
    "tags": ["Analytics", "Dashboard", "KPI", "Real-time"]
  },
  "layout": {
    "minW": 5,
    "maxW": 24,
    "minH": 5,
    "maxH": 12
  },
  "settingsSchema": {
    "title": "KPI Tracker Settings",
    "uiSchema": {
      "ui:order": [
        "title",
        "titleTooltip",
        "apiUrl",
        "refreshInterval",
        "showTrend",
        "enableNotifications"
      ],
      "title": {
        "ui:widget": "InputWidget",
        "ui:options": {}
      },
      "titleTooltip": {
        "ui:widget": "InputWidget",
        "ui:options": {}
      },
      "apiUrl": {
        "ui:widget": "InputWidget",
        "ui:options": {}
      },
      "refreshInterval": {
        "ui:widget": "InputWidget",
        "ui:options": {
          "inputType": "number"
        }
      },
      "showTrend": {
        "ui:widget": "CheckboxWidget",
        "ui:options": {}
      },
      "enableNotifications": {
        "ui:widget": "CheckboxWidget",
        "ui:options": {}
      }
    },
    "jsonSchema": {
      "type": "object",
      "required": ["apiUrl"],
      "properties": {
        "title": {
          "type": "string",
          "title": "Widget Title",
          "default": "KPI Tracker"
        },
        "titleTooltip": {
          "type": "string",
          "title": "Title Tooltip"
        },
        "apiUrl": {
          "type": "string",
          "title": "API URL",
          "default": "_internal_api_"
        },
        "refreshInterval": {
          "type": "number",
          "title": "Refresh Interval (seconds)",
          "default": 30,
          "minimum": 10,
          "maximum": 300
        },
        "showTrend": {
          "type": "boolean",
          "title": "Show Trend Indicators",
          "default": true
        },
        "enableNotifications": {
          "type": "boolean",
          "title": "Enable Notifications",
          "default": false
        }
      }
    },
    "extraErrors": {},
    "formType": "json"
  }
}

Widget Types

Reference: Widget Store Migrations

enum WidgetType {
  Platform = 0, // Navigation/toolbar widgets
  Dashboard = 1, // Dashboard widgets
  Universal = 2, // Can be both
}

Preview Image

Create a preview image at public/preview.svg:

• Format: SVG
• Dimensions: 88x64 pixels
• Purpose: Displays in Micro App Library

Context Rules

Reference: Widget Metadata

Context rules determine when widgets can be added to a dashboard based on URL query parameters. These rules control widget availability in the Micro App Library menu within the Dashboard Composer (Host application).

Context Rule Types

none - Widget doesn't depend on query parameters (default behavior)

{
  "contextRules": {
    "type": "none"
  }
}

Widget appears in Micro App Library regardless of URL parameters.

dynamic - Widget appears if any of the specified keys are present OR if none are present

{
  "contextRules": {
    "type": "dynamic",
    "keys": ["contactId", "branchId"]
  }
}

Widget appears when:

• URL contains /dashboard?contactId=123, OR
• URL contains /dashboard?branchId=456, OR
• URL has no query parameters (/dashboard)

strict - Widget appears only if all specified keys are present

{
  "contextRules": {
    "type": "strict",
    "keys": ["contactId"]
  }
}

Widget appears only when URL contains /dashboard?contactId=123

Regular Expressions

For flexible pattern matching, use regular expressions in keys:

{
  "contextRules": {
    "type": "strict",
    "keys": ["/^phone/i"]
  }
}

Matches URLs like:

• /dashboard?phoneNumber=555-1234
• /dashboard?phoneNum=555-1234
• /dashboard?phoneUser=john

Advanced Example

{
  "contextRules": {
    "type": "dynamic",
    "keys": ["accountId", "userId", "/^contact/i"]
  }
}

Widget appears when URL contains accountId, userId, any parameter starting with "contact" (case-insensitive), or no parameters.

---

Using Theming and Styling

Reference:

• Theme Serving
• Theme Using

Theme Structure

The platform provides themes with:

• ColorPalette: primary, secondary, tertiary, background, surface, danger, warning, success
• FontsT: primary and secondary fonts with sources
• sizeUnit: Base spacing unit (typically 4px)
• borderRadius: Default border radius
• chartColors: Array of colors for charts
• typography: Typography definitions (Heading1, Heading2, Body1, etc.)

Using useTheme Hook

import { useTheme } from "styled-components";
import type { IThemeProps } from "@invent/shared-types";

const MyComponent = () => {
  const theme = useTheme();

  // Access theme properties
  const primaryColor = theme.colors.primary;
  const sizeUnit = theme.sizeUnit;

  return <div>Theme applied</div>;
};

Theme Utility Functions

Import from @invent/wl-ui-kit:

import {
  getColor,
  getColorShade,
  getChartColor,
  getGradient,
  getSizeUnit,
  getSizeBy,
  getBorderThickness,
  getFontFamily,
  getTypography,
  injectFontFaces,
  getElevation,
  getWidgetShadowOptions,
  getThemeProp,
  getPropOrElse,
  ifPropExist,
  getHintColor,
  getMixinFromTheme,
} from "@invent/wl-ui-kit";

Color Utilities

// Basic color
color: ${getColor('primary')}; // Returns: rgb(19, 183, 209)

// Color with opacity shade
color: ${getColor('primary', 'mediumEmphasis')};
// Returns: color-mix(in srgb, rgb(19, 183, 209) 72%, rgb(255, 255, 255))

// RGB color with alpha
color: ${getColorShade('primary', 'mediumEmphasis')};
// Returns: rgb(19 183 209 / 0.72)

// Chart color by index
background-color: ${getChartColor(0)}; // First chart color
background-color: ${getChartColor(1)}; // Second chart color

// Gradient
background: linear-gradient(${getGradient('primary', [
  { opacity: 0, gradientSlicePercent: 0 },
  { opacity: 1, gradientSlicePercent: 100 }
])}); // Returns: rgb(19 183 209 / 0) 0%, rgb(19 183 209 / 1) 100%

// Hint/status colors
color: ${getHintColor('success')}; // Success color with high emphasis
color: ${getHintColor('error')};   // Error color with high emphasis

Size Utilities

// Base size unit
line-height: ${getSizeUnit}; // Returns: 4

// Size with multiplier
padding: ${getSizeBy(2)}; // Returns: 8px (4 * 2)
margin: ${getSizeBy(4)};  // Returns: 16px (4 * 4)

// Size with modifier (small, medium, large)
padding: ${getSizeBy(2, 'large')}; // Returns: 11px (4 * 2 * 1.33)
margin: ${getSizeBy(3, 'small')};  // Returns: 10px (4 * 3 * 0.83)

// Border thickness
border-width: ${getBorderThickness()}; // Theme-based thickness

Typography Utilities

// Font family
font-family: ${getFontFamily('primary')}; // Returns: 'DM Sans, sans-serif'
font-family: ${getFontFamily('secondary')}; // Secondary font

// Typography preset (applies fontSize, fontWeight, lineHeight)
${getTypography('Heading1')}
${getTypography('Heading2')}
${getTypography('Body1')}
${getTypography('Caption')}
${getTypography('ButtonText')}

// Inject font faces
${injectFontFaces('/assets')} // Generates @font-face CSS

Elevation and Shadows

// Elevation (0, 1, 2, 4, 8, 16)
box-shadow: ${getElevation(0)}; // No shadow
box-shadow: ${getElevation(1)}; // Returns: 0px 1px 1px rgb(24 31 36 / 0.06)
box-shadow: ${getElevation(2)}; // Returns: 0px 2px 2px rgb(24 31 36 / 0.06)
box-shadow: ${getElevation(8)}; // Returns: 0px 8px 16px rgb(24 31 36 / 0.12)

// Widget shadow
box-shadow: ${getWidgetShadowOptions}; // Theme-defined widget shadow or 'none'

Theme Property Access

// Direct theme property
border-radius: ${getThemeProp('borderRadius')}px; // Returns: 3px
width: ${getThemeProp('sizeUnit')}px; // Returns: 4px

// Theme prop with fallback
${getThemePropOrElse(['customProp'], 'defaultValue')}
${getThemePropOrElse(['nested', 'property'], '10px')}

// Component prop with fallback
letter-spacing: ${getPropOrElse(['letterSpacing'], 0.08)}px;

// Conditional prop
margin-bottom: ${ifPropExist(['disabled'], '6px')};
display: ${ifPropExist(['hidden'], 'none')};

// Custom theme mixin
${getMixinFromTheme('customMixin')} // Returns CSS from theme

Complete Styled Component Example

import React from "react";
import styled from "styled-components";
import {
  getColor,
  getColorShade,
  getSizeBy,
  getSizeUnit,
  getThemeProp,
  getPropOrElse,
  ifPropExist,
  getElevation,
  getFontFamily,
  getTypography,
  getChartColor,
  getBorderThickness,
  getHintColor,
} from "@invent/wl-ui-kit";

interface ThemedCardProps {
  variant?: "primary" | "secondary";
  elevation?: 0 | 1 | 2 | 4 | 8 | 16;
  disabled?: boolean;
  status?: "success" | "warning" | "error" | "info";
}

const ThemedCard = styled.div<ThemedCardProps>`
  /* Layout */
  padding: ${getSizeBy(3)};
  margin-bottom: ${getSizeBy(2)};
  border-radius: ${getThemeProp("borderRadius")}px;

  /* Colors */
  background-color: ${({ variant }) =>
    variant === "secondary" ? getColor("secondary") : getColor("surface")};
  color: ${getColor("onSurface")};
  border: ${getBorderThickness()} solid ${getColorShade(
      "primary",
      "lowEmphasis"
    )};

  /* Typography */
  font-family: ${getFontFamily("primary")};
  ${getTypography("Body1")};

  /* Elevation */
  box-shadow: ${({ elevation = 1 }) => getElevation(elevation)};

  /* Status color */
  ${({ status }) =>
    status &&
    `
    border-left: 4px solid ${getHintColor(status)};
  `}

  /* Disabled state */
  ${({ disabled }) =>
    disabled &&
    `
    opacity: 0.5;
    pointer-events: none;
    margin-bottom: ${ifPropExist(["disabled"], "6px")};
  `}

  /* Hover state */
  &:hover {
    box-shadow: ${getElevation(2)};
    background-color: ${getColorShade("surface", "highEmphasis")};
  }
`;

const KpiCard: React.FC<ThemedCardProps> = ({ children, ...props }) => {
  return <ThemedCard {...props}>{children}</ThemedCard>;
};

export default KpiCard;

Responsive Design with Media Queries

Reference: Host application (wlabel)

import styled from "styled-components";
import { getSizeBy } from "@invent/wl-ui-kit";

// Viewport breakpoints
export const VIEWPORT_BREAKPOINTS = {
  EXTRA_EXTRA_SMALL: 0,
  EXTRA_SMALL: 320,
  SMALL: 768,
  MEDIUM: 1220,
  LARGE: 1920,
};

const ResponsiveContainer = styled.div`
  display: flex;
  flex-direction: column;

  @media screen and (min-width: ${VIEWPORT_BREAKPOINTS.SMALL}px) {
    flex-direction: row;
  }

  @media screen and (min-width: ${VIEWPORT_BREAKPOINTS.MEDIUM}px) {
    padding: ${getSizeBy(4)};
  }

  @media screen and (min-width: ${VIEWPORT_BREAKPOINTS.LARGE}px) {
    max-width: 1600px;
    margin: 0 auto;
  }
`;

export default ResponsiveContainer;

---

Creating Widget Settings

Reference: Widget Config

Settings Schema Structure

Settings are defined in widget-config.json using react-jsonschema-form:

{
  "settingsSchema": {
    "title": "KPI Tracker Settings",
    "uiSchema": {
      "ui:order": ["title", "apiUrl", "refreshInterval"],
      "title": {
        "ui:widget": "InputWidget",
        "ui:options": {}
      }
    },
    "jsonSchema": {
      "type": "object",
      "required": ["apiUrl"],
      "properties": {
        "title": {
          "type": "string",
          "title": "Widget Title"
        }
      }
    },
    "extraErrors": {},
    "formType": "json"
  }
}

Form Types

• "json": Standard JSON Schema form
• "customized": Custom form with JSON Schema validation
• "dedicated": Fully custom form component

Widget Settings Interface

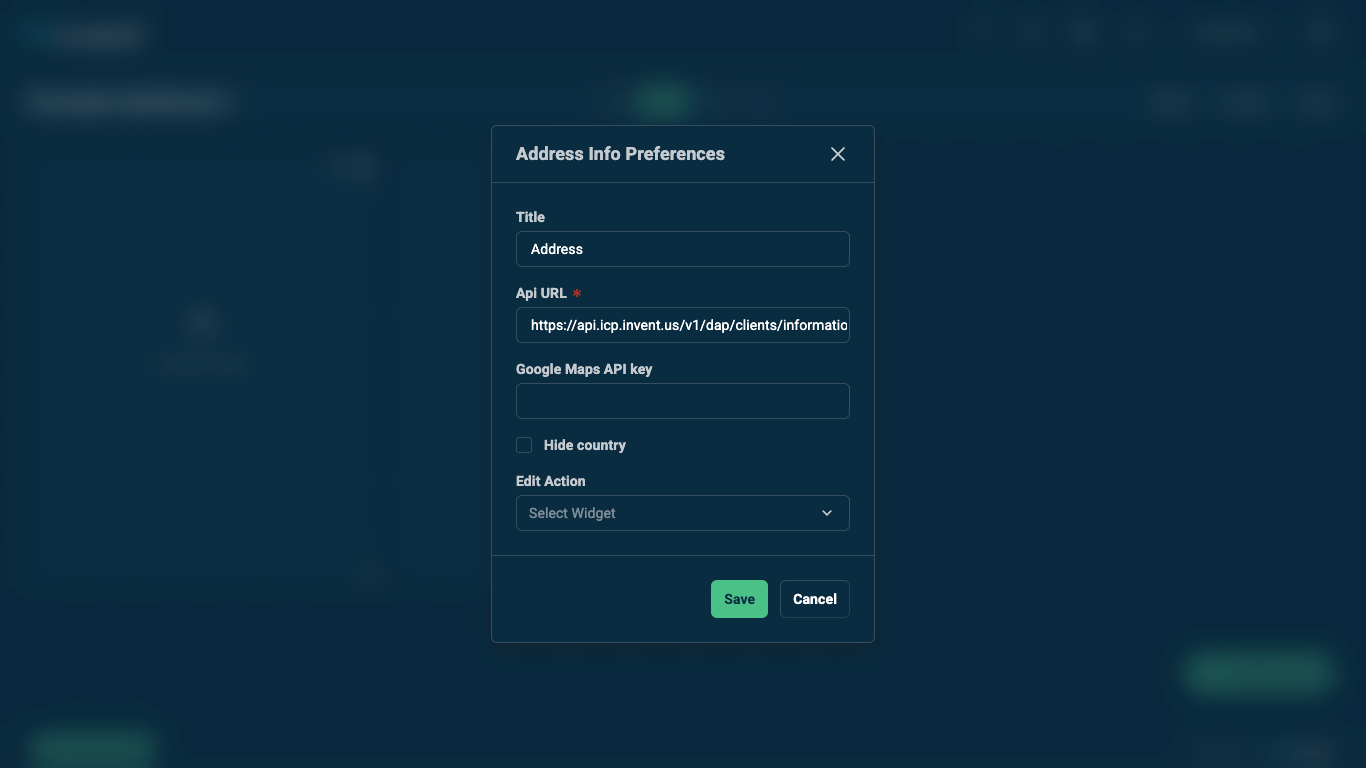

Address Info widget settings interface example showing the configuration panel in the Dashboard Composer (Host application)

Widget Settings Component

src/widget/widget-settings.tsx:

import React from "react";
import type { IWidgetProps } from "../types/widget-props";

interface ISettingsProps extends IWidgetProps {
  onSettingsChange: (settings: any) => void;
}

const KpiTrackerSettings: React.FC<ISettingsProps> = ({
  title,
  apiUrl,
  refreshInterval,
  onSettingsChange,
  httpClient,
}) => {
  // For formType: "json", the form is auto-generated from jsonSchema
  // For formType: "customized" or "dedicated", implement custom UI

  return (
    <div>
      {/* Custom settings UI if needed */}
      <p>Settings are managed via JSON Schema form</p>
    </div>
  );
};

export default KpiTrackerSettings;

Advanced Settings Schema

{
  "settingsSchema": {
    "title": "Advanced KPI Tracker Settings",
    "uiSchema": {
      "ui:order": [
        "title",
        "titleTooltip",
        "apiUrl",
        "refreshInterval",
        "metrics",
        "thresholds",
        "displayOptions"
      ],
      "title": {
        "ui:widget": "InputWidget",
        "ui:options": {
          "placeholder": "Enter widget title"
        }
      },
      "titleTooltip": {
        "ui:widget": "InputWidget",
        "ui:options": {
          "placeholder": "Tooltip shown on hover"
        }
      },
      "apiUrl": {
        "ui:widget": "InputWidget",
        "ui:options": {
          "placeholder": "https://api.example.com"
        }
      },
      "refreshInterval": {
        "ui:widget": "InputWidget",
        "ui:options": {
          "inputType": "number"
        }
      },
      "metrics": {
        "ui:widget": "CheckboxesWidget",
        "ui:options": {}
      },
      "thresholds": {
        "revenue": {
          "ui:widget": "InputWidget",
          "ui:options": {
            "inputType": "number"
          }
        }
      },
      "displayOptions": {
        "showTrend": {
          "ui:widget": "CheckboxWidget",
          "ui:options": {}
        },
        "enableNotifications": {
          "ui:widget": "CheckboxWidget",
          "ui:options": {}
        },
        "chartType": {
          "ui:widget": "SelectWidget",
          "ui:options": {}
        }
      }
    },
    "jsonSchema": {
      "type": "object",
      "required": ["apiUrl", "refreshInterval"],
      "properties": {
        "title": {
          "type": "string",
          "title": "Widget Title",
          "default": "KPI Tracker",
          "maxLength": 50
        },
        "titleTooltip": {
          "type": "string",
          "title": "Title Tooltip",
          "maxLength": 200
        },
        "apiUrl": {
          "type": "string",
          "title": "API URL",
          "default": "_internal_api_",
          "pattern": "^https?://.*"
        },
        "refreshInterval": {
          "type": "number",
          "title": "Refresh Interval (seconds)",
          "default": 30,
          "minimum": 10,
          "maximum": 300
        },
        "metrics": {
          "type": "array",
          "title": "Metrics to Display",
          "items": {
            "type": "string",
            "enum": ["revenue", "users", "conversion", "churn", "ltv"]
          },
          "uniqueItems": true,
          "default": ["revenue", "users", "conversion"]
        },
        "thresholds": {
          "type": "object",
          "title": "Alert Thresholds",
          "properties": {
            "revenue": {
              "type": "number",
              "title": "Revenue Threshold",
              "default": 10000
            },
            "users": {
              "type": "number",
              "title": "Users Threshold",
              "default": 1000
            },
            "conversion": {
              "type": "number",
              "title": "Conversion Rate Threshold (%)",
              "default": 2.5,
              "minimum": 0,
              "maximum": 100
            }
          }
        },
        "displayOptions": {
          "type": "object",
          "title": "Display Options",
          "properties": {
            "showTrend": {
              "type": "boolean",
              "title": "Show Trend Indicators",
              "default": true
            },
            "enableNotifications": {
              "type": "boolean",
              "title": "Enable Notifications",
              "default": false
            },
            "chartType": {
              "type": "string",
              "title": "Chart Type",
              "enum": ["line", "bar", "area"],
              "default": "line"
            }
          }
        }
      }
    },
    "extraErrors": {},
    "formType": "json"
  }
}

Using Settings in Widget

Settings configured in the Dashboard Composer (Host application) are passed as individual props to the widget component:

const KpiTracker: React.FC<IWidgetProps> = ({
  title,
  apiUrl,
  refreshInterval,
  metrics,
  displayOptions,
  showTrend,
}) => {
  // Access settings directly as props
  const metricsToDisplay = metrics || ["revenue", "users"];
  const showTrendIndicators = displayOptions?.showTrend ?? showTrend ?? true;

  // Use settings in logic
  useEffect(() => {
    const interval = setInterval(() => {
      fetchData();
    }, refreshInterval * 1000);

    return () => clearInterval(interval);
  }, [refreshInterval]);

  return (
    <div>
      <h2>{title}</h2>
      {metricsToDisplay.includes("revenue") && <RevenueMetric />}
      {metricsToDisplay.includes("users") && <UsersMetric />}
      {showTrendIndicators && <TrendIndicators />}
    </div>
  );
};

---

Implementing Widget Preview

Widget preview is displayed in the Dashboard Composer (Host application) when users add widgets to dashboards.

Widget Preview Component

The preview component should be an SVG React component for optimal performance and scalability.

src/widget-preview/widget-preview.tsx:

import React, { SVGProps } from "react";
import styled from "styled-components";

function KpiTrackerPreview(props: SVGProps<SVGSVGElement>) {
  return (
    <Svg
      width="88"
      height="64"
      viewBox="0 0 88 64"
      xmlns="http://www.w3.org/2000/svg"
      {...props}
    >
      {/* Header */}
      <rect x="4" y="4" width="80" height="8" rx="2" fill="#13B7D1" />

      {/* KPI Cards */}
      <rect x="4" y="16" width="25" height="20" rx="2" fill="#EDF5FA" />
      <rect x="32" y="16" width="25" height="20" rx="2" fill="#EDF5FA" />
      <rect x="60" y="16" width="24" height="20" rx="2" fill="#EDF5FA" />

      {/* Card labels */}
      <rect
        x="7"
        y="19"
        width="19"
        height="3"
        rx="1"
        fill="#204E6E"
        opacity="0.6"
      />
      <rect
        x="35"
        y="19"
        width="19"
        height="3"
        rx="1"
        fill="#204E6E"
        opacity="0.6"
      />
      <rect
        x="63"
        y="19"
        width="19"
        height="3"
        rx="1"
        fill="#204E6E"
        opacity="0.6"
      />

      {/* Card values */}
      <rect x="7" y="25" width="18" height="5" rx="1" fill="#13B7D1" />
      <rect x="35" y="25" width="18" height="5" rx="1" fill="#13B7D1" />
      <rect x="63" y="25" width="16" height="5" rx="1" fill="#13B7D1" />

      {/* Trend indicators */}
      <rect x="7" y="32" width="10" height="2" rx="1" fill="#0CA660" />
      <rect x="35" y="32" width="10" height="2" rx="1" fill="#0CA660" />
      <rect x="63" y="32" width="10" height="2" rx="1" fill="#F33309" />

      {/* Footer */}
      <rect
        x="4"
        y="42"
        width="40"
        height="3"
        rx="1"
        fill="#204E6E"
        opacity="0.4"
      />
    </Svg>
  );
}

const Svg = styled.svg`
  display: block;
`;

export default KpiTrackerPreview;

Alternative: Image Preview

Widgets can also display a preview using an image URL specified in widget-config.json:

{
  "widgetDetails": {
    "title": "KPI Tracker",
    "type": "Informer",
    "description": "Displays key performance indicators",
    "customLogo": "https://example.com/path/to/preview-image.png"
  }
}

When customLogo is provided, it will be used instead of the SVG preview component in the Micro App Library.

---

Next Steps

Continue to: Core Features →
